Intro

A framework for distributed agents

Paolo Bosetti

University of Trento

2025-Jul-07

What is it?

stands for Multi-Agent Distributed System

Terminology
Basic Usage
Linux services
Plugins
Parallel computing

Terminology

Let’s get understood…

Agent: an entity that can perceive its environment and act upon it.
Network: a set of agents, possibly distributed over different devices or machines, and exchanging information via ZeroMQ/TCP connections

MADS aims at being as transparent as possible w.r.t. the underlying network.

The same MADS network could run

on a single machine (via loopback connections)
as well as on multiple machines (via TCP connections), one agent per machine

And everything in between…

MADS Network Topology

To maximize flexibility and scalability, MADS networks are broker-based

only IP/hostname of broker is needed
broker does message dispatching
agents can filter messages by topics
agents can be added/removed dynamically
agents can act as source, filter, or sink

It’s a ZeroMQ network

MADS uses ZeroMQ as the underlying communication layer:

connections are established via TCP (XPUB-XSUB)
order of connection does not matter
disconnection/reconnection is handled automatically
minimum overhead w.r.t. other protocols (e.g., HTTP, gRPC, REST)
application-layer protocol is agnostic to the underlying transport, and left to the user
MADS is designed to be simple, so data on the wire is presented as JSON compressed with snappy
MADS is designed to be scalable: you can have hundreds of agents, the limiting factor being network bandwidth

Agents

Agents are the building blocks of a MADS network. They can be:

Sources: produce data and send it to the network
Filters: process data received from the network and send it to other agents
Sinks: consume data from the network and perform actions based on it

Agents can be implemented in any programming language that supports ZeroMQ, but MADS provides C++ API that abstracts ZeroMQ intricacies.

Agents

Using MADS API, agents can be implemented as:

monolithic: a single executable that contains all the logic
plugin-based: a general purpose executable that loads plugins dynamically, allowing for modularity and extensibility; the user only has to develop the plugin with minimal boilerplate code and API knowledge
Python modules: MADS agent can load at runtime Python modules that provide a proper interface (2-3 functions)

Implementation

MADS is implemented in C++17 and provides an API to create agents and connect them to the network
It can be compiled on Linux, macOS, and Windows
Compilation is rather tedious and has a number of dependencies, but:
- installers are available for Linux, MacOS, and Windows
- a Docker image is available for easy setup
Developing custom agents as plugins is much easier, as it requires only a few functions to be implemented
Example plugins are available on GitHub
The main MADS command can generate a plugin template

Tip

Easy to remember: https://git.new/mads!

Basic usage

How do we use it in practice?

Main command: `mads`

The standard installers provide a main command: mads

Inline help is available with mads --help:

> mads --help
Mads command line interface version 1.3.1
Usage:
  mads [OPTION...]

  -i, --info     Print information on MADS installation
  -p, --prefix   Print MADS install prefix
      --plugins  List plugins in default plugins directory
  -v, --version  Print version
  -h, --help     Print help

Options -i and -p are useful to check the installation

Mads subcommands

The list of available mads sub commands can be obtained as:

> mads
Available mads subcommands:
   filter (wraps mads-filter)
   worker (wraps mads-worker)
  command (wraps mads-command)
    image (wraps mads-image)
 feedback (wraps mads-feedback)
  logging (wraps mads-logging)
   plugin (wraps mads-plugin)
   source (wraps mads-source)
   bridge (wraps mads-bridge)
     sink (wraps mads-sink)
   dealer (wraps mads-dealer)
   python (wraps mads-python)
   logger (wraps mads-logger)
   broker (wraps mads-broker)
      ini (internal)
  service (internal)

On MacOS and Linux, commands are available as e.g. mads source or mads-source
On Windows, commands are available as e.g. mads-source only
internal commands are implemented by the mads executable
Man pages are available (e.g. man mads-source)

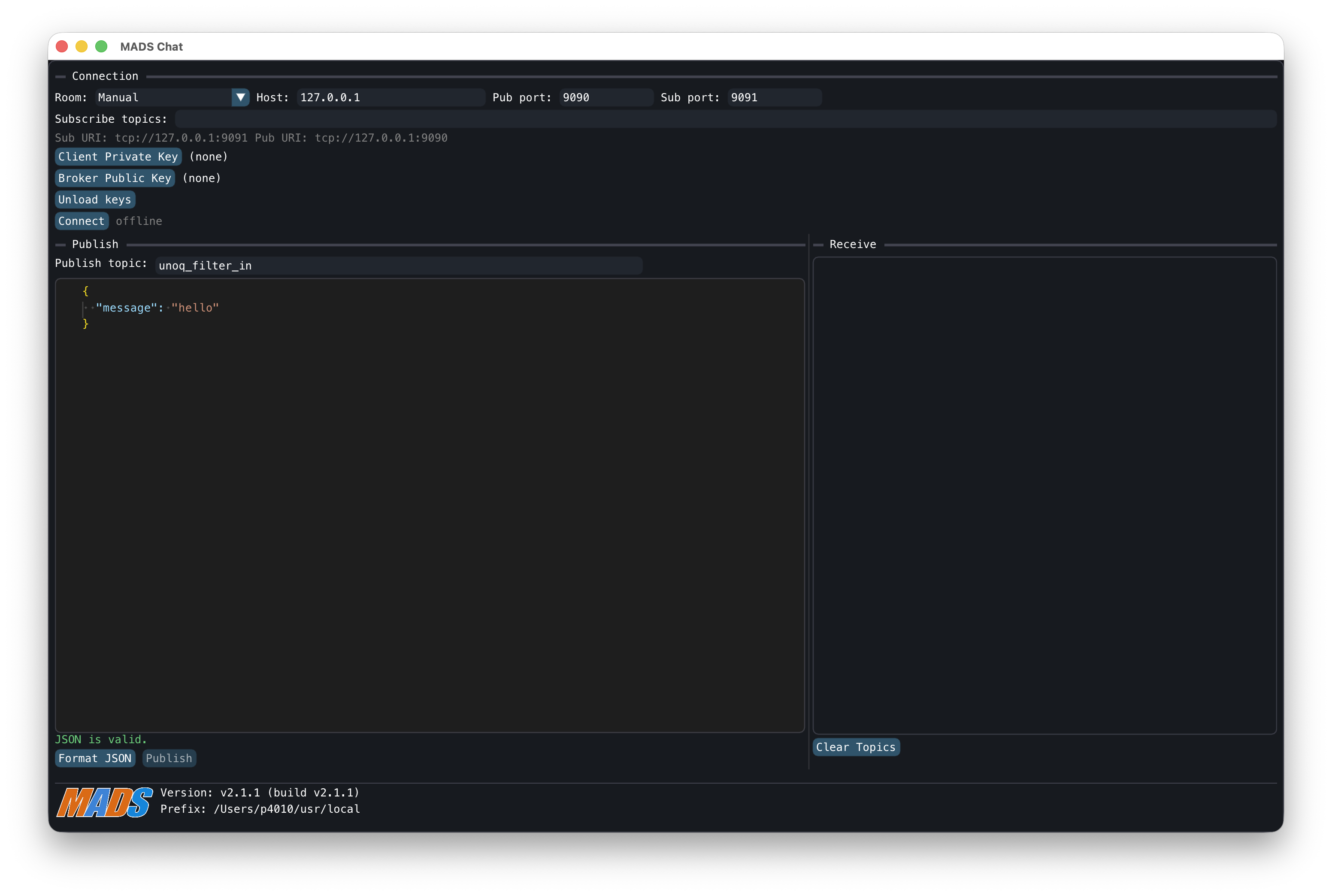

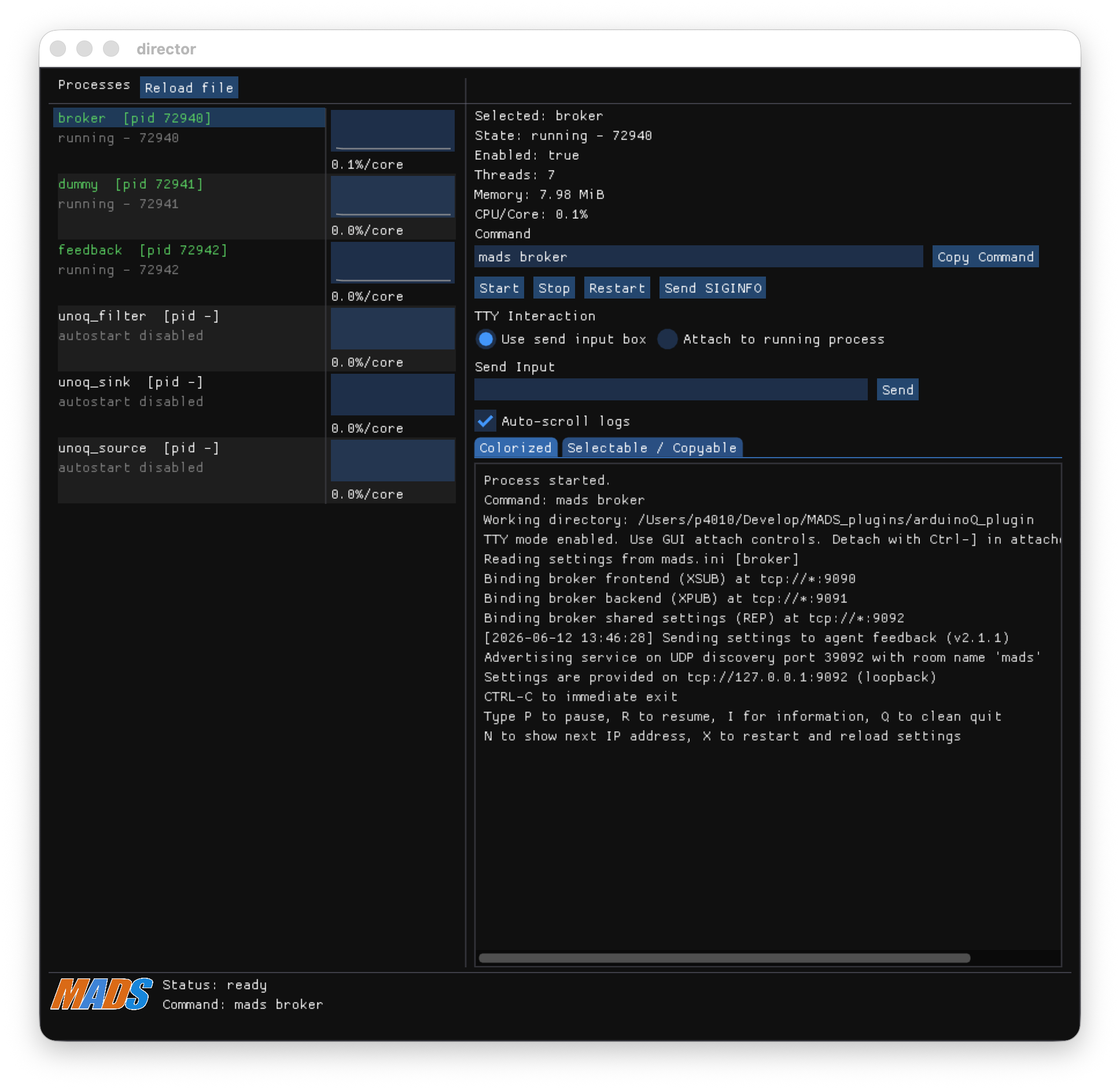

Launching the `broker`

> mads broker
Reading settings from /Users/p4010/usr/local/etc/mads.ini [broker]
Binding broker frontend (XSUB) at tcp://*:9090
Binding broker backend (XPUB) at tcp://*:9091
Binding broker shared settings (REP) at tcp://*:9092
Timecode FPS: 25
Settings are provided via tcp://127.0.0.1:9092
CTRL-C to immediate exit
Type P to pause, R to resume, I for information, Q to clean quit, X to restart and reload settings

Line 2 and 7 report a fundamental aspect: the centralized settings file
Settings for all agents are stored in a TOML file, which is dispatched by the broker to the agents upon launch
Each agent is launched with the settings URL (e.g. tcp://127.0.0.1:9092) as a command line argument

Running an agent

To run an agent on a device different from the one running the broker, we need to specify the broker address
We see relevant agent settings (loaded from broker):
- pub topic: messages are tagged with publish
- compression: JSON compressed with snappy
- timecode: all messages generated in the same 40ms share the same timecode
- timecode offset: clock difference with broker

Logging data

Data flowing on the MADS network can be logged for later analysis
MADS provides two official logging facilities:
- a MongoDB logger
- an HDF5 logger
Regardless the logging facility, each message is stored as a JSON document with some added common fields:
- timecode: the time when the data was produced as a multiple of a fixed timestep (e.g. 40ms). Measured in seconds from last midnight (local time)
- timestamp: an ISO 8601 timestamp of the data
- hostname: the hostname of the machine that produced the data

Logger

MADS provides an agent called logger for logging messages
The logger is designed to store data into a MongoDB database
MongoDB is schemaless, so it can store any JSON data published to the MADS network
Each agent publishes on a given topic (e.g. publish)
For each topic, a corresponding table is created in the database, and each message is stored as a document in that table
Each document has additional fields: timecode (a fixed timestep in ms), timestamp (and ISO 8601 time), and hostname
MongoDB aggregations can offload some computational load and make data easier to fetch

Note

A MongoDB instance can be easily started with Docker:

> docker run -d --name mads-mongo -p 27017:27017 -v ${PWD}/db:/data/db mongo

HDF5 logger

Among the official MADS plugins, there is also an HDF5 logger
The hdf5_writer.plugin is a MADS sink that stores data in an HDF5 file
Within the HDF5 file, each topic goes into a separate group
messages are queued, so a scalar becomes a vector, a vector becomes a table
the INI file must specify which data has to be saved, using a keypath syntax: "key1.subkey2.subsubkey3" corresponds to JSON fields data["key1"]["subkey2"]["subsubkey3"]
timestamp, timecode, and hostname are automatically recorded into separate datasets

Note

The plugin is available on https://github.com/MADS-Net/hdf5_plugin

Rerun graphical logger

The rerunner.plugin is a MADS sink that streams data to Rerun.io
Can subscribe to many topics and select data to plot with keypaths as topic.message.field.value
Fast: thousands of messages per second
Currently plots time series and ACF plots
Flexible: 2-D plots, 3-D scenes, bar charts, graphs, maps easy to implement (in C++)

Services

Automate it!

MADS services

On Linux machine only, MADS provides a service file generator that can be used to run MADS agents as system services, automatically active on boot

Procedure:

define the proper launch command, e.g. mads source -s tcp://mads-broker.local:9092 -n my_datasource
run mads service my_datasource source -s tcp://mads-broker.local:9092 -n my_datasource; this prints a possible systemctl file for a service called my_datasource.service
if it looks correct, run the same command as sudo: this installs the service on the system dir
enable the service: sudo systemctl enable my_datasource.service

Plugins

Or, please, make it easy!

Motivation

MADS is designed to be simple, but it can be complex to implement agents
Implementing an agent (monolithic) requires knowledge of the MADS API, ZeroMQ
Compiling the agent takes time and requires a proper development environment, especially on Windows
We wanted to let users focus on the agent logic, not on the boilerplate code
At the same time, we wanted to keep the advantages of C++ (performance, low-level control, etc.), without forcing users to revert to scripting interfaces just because the whole C++ framework is too complex

Solution: MADS plugins

MADS plugins

A plugin is a shared library that implements a specific agent logic
Plugins are loaded dynamically by the MADS general purpose executables:
- mads source: provides information to the network (e.g. by reading sensors)
- mads filter: processes data received from the network and sends it to other agents
- mads sink: consumes data from the network and performs actions based on it (e.g. by writing to a file)
The specific agent logic is implemented in the plugin, which is a C++ class that inherits from a base class
MADS provides the mads plugin command to create a plugin template

Running `mads plugin`

The mads plugin command creates a plugin template in the current directory
The template contains a CMakeLists.txt file and a src directory with the plugin source code
The template has minimal dependencies:
- A C++17 compliant compiler (VS 2017 or later, GCC 7 or later, Clang 5 or later)
- CMake 3.15 or later
- Any other dependency must be added to CMakeLists.txt
CMake can be configured to install the plugin in the MADS plugins directory, so that the plugin is automatically found

Plugin class details

class My_sourcePlugin : public Source<json> {
public:
  // Implement the actual functionality here
  return_type get_output(json &out,
                         std::vector<unsigned char> *blob = nullptr) override {
    // Your logic to fill 'out' with data
    // optionally use 'blob' for binary content
  }

  // Run only once upon start
  void set_params(void const *params) override {
    // Optional: handle parameters passed to the plugin
    // This can be used to configure the plugin at runtime
  }
private:
  // custom fields here
};
// Macro that does the magic of allowing dlopen to work
INSTALL_SOURCE_DRIVER(My_sourcePlugin, json)

Plugin class details

Implementing a plugin does not require knowledge of the MADS API
Only two methods (three methods for filter plugins) need to be implemented
Any third party library is left to the user:
- add necessary find_package calls in CMakeLists.txt
- link the library to the plugin
- include the necessary headers in the plugin source code
The plugin source code also has a template main() function: beside each plugin, a one-shot executable is provided (and compiled) that can be used to test the plugin logic without the need of a MADS network

OTA plugins

Plugins can be loaded Over-The-Air (OTA) by the mads source, mads filter, and mads sink commands
If the INI file contains an entry like this:
```
[my_source]
attachment = "/path/to/my_source.plugin"
```
then that file (on the broker filesystem!) is sent to my_source agents when they connect to the broker
This allows to have all plugins in a single location, and to update them without having to manually copy them to each agent machine

Parallel computing

MADS can be also use for dispatching parallel computations on HPC clusters

The dealer-worker model

Suppose that you want to explore a large domain of parameters for a simulation to perform sensitivity analysis or parameters optimization:

ZeroMQ provides a special PUSH-PULL communication model between a single dealer and multiple, identical workers
The dealer distributes tasks to the workers in a round-robin fashion
Each worker processes the task and sends the result back to the broker
In a possible implementation, a source provides the grid of parameters combination and a logger agent store the results

The MADS implementation

In MADS, there are two special agents for this purpose: dealer and worker

dealer: receives the computational payloads (simulation input) from a suitable source agent, and dispatches them to the workers
worker: receives the computational payloads and uses a custom plugin to process them (of type filter), then sends the results back to the broker

Ideally, the worker plugin is launched in \(n\) instances on a Kubernetes cluster; each instance loads the computational plugin OTA from the broker

Security

Starting from v2.0.0, MADS supports authentication and encryption over the network

What is it

Encryption is provided via ZeroMQ CURVE backend
CURVE provides elliptic curve cryptography via public/private key; provides same security as RSA but with much smaller and faster keys
Public/provate keypair also provide authentication
IP whitelisting is also supported

How?

The mads command can create the public/private keypair for a device
The broker must have the public keys of all connecting devices, plus its own private key
Each device must have the broker’s key, plus its own private key

Contacts

MADS homepage: https://github.com/pbosetti/MADS
MADS Plugins: https://github.com/MADS-net
Developer:

Partners

University of Trento, Italy
INSA Toulouse, France
University of Brescia, Italy
University of Perugia, Italy

Intro

What is it?

Contents

Terminology

Let’s get understood…

MADS Network Topology

It’s a ZeroMQ network

Agents

Agents

Implementation

Basic usage

Main command: mads

Mads subcommands

Launching the broker

Running an agent

Logging data

Logger

HDF5 logger

Rerun graphical logger

Services

MADS services

Plugins

Motivation

MADS plugins

Running mads plugin

Plugin class details

Plugin class details

OTA plugins

Parallel computing

The dealer-worker model

The MADS implementation

Security

What is it

How?

Contacts

Partners

Main command: `mads`

Launching the `broker`

Running `mads plugin`
