Replay plugin

Author

Affiliation

Paolo Bosetti

University of Trento

Abstract

When debugging a MADS system, it might prove useful to have a way to “replay” a previously recorded data stream. This is what the replay.plugin does.

The plugin

Getting it

The replay.plugin is available on https://github.com/MADS-NET/replay_plugin. Clone it and build as usual with (on Windows, follow the instriction on the README.md file):

cmake -Bbuild -DCMAKE_INSTALL_PREFIX="$(mads -p)"
cmake --build build -j4
sudo cmake --install build

Configuration

Apart from the common settings, the INI file for the replay.plugin requires the following additional fields:

[replay]
pub_topic = "sensors" # topic on which to publish the datasets
csv_file = "path/to/file.csv"
loop = true # once the end of file has been reached, start again from beginning

Note that the CSV file path can be either absolute or relative to the current working directory (the one where you launch the agent).

Mapping a CSV to a list of JSON objects

The CSV is supposed to contain a list of datasets, one per row, with different signals in different rows.

But how do we map a flat row of a CSV file to a structured JSON object, which may have nested sub-objects and sub-arrays?

The answer is to use keypaths as column headers. A keypath is a string that identifies the path to a specific field in a JSON object, using slashes (/) to separate different levels of the hierarchy,including array indexes (zero based). For example:

# Comments and empty lines are skipped
/timestamp, /sensor/0/temperature, /sensor/0/humidity, /sensor/1/temperature, /sensor/1/humidity
2024-06-01T12:00:00Z, 22.5, 45.0, 23.0, 50.0

becomes:

{
  "timestamp": "2024-06-01T12:00:00Z",
  "sensor": [
    {
      "temperature": 22.5,
      "humidity": 45.0
    },
    {
      "temperature": 23.0,
      "humidity": 50.0
    }
  ]
}

Important

Keypaths must start with a leading slash: /sensor/x os OK, sensor/x is wrong.

An alternative syntax uses dots and square brakets for array indexes, as for example in sensor[0].temperature. This alterante syntax is supported because it’s the way MongoDB Compass exports data to CSV format (see later on for an example).

Replaying multiple signals

To replay multiple agents, you need to have multiple CSV files, one per agent, and launch multiple instances of the replay.plugin, each one with its own INI file and with its custom pub_topic and agent name. With the INI file having:

[replay_agent1]
pub_topic = "temperature" # topic on which to publish the datasets
csv_file = "temp_data.csv"
loop = true

[replay_agent2]
pub_topic = "imu" # topic on which to publish the datasets
csv_file = "imu_data.csv"
loop = true

launch two agents with:

# on first terminal:
mads source replay.plugin -n replay_agent1
# on second terminal:
mads source replay.plugin -n replay_agent2

Creating a CSV file

An input CSV file can be easily created with scripting languages by generating synthetic data, or by logging data from sensors.

Another possibility is to use MADS to record data in the MongoDB database, then use MongoDB Compass to export the data as CSV.

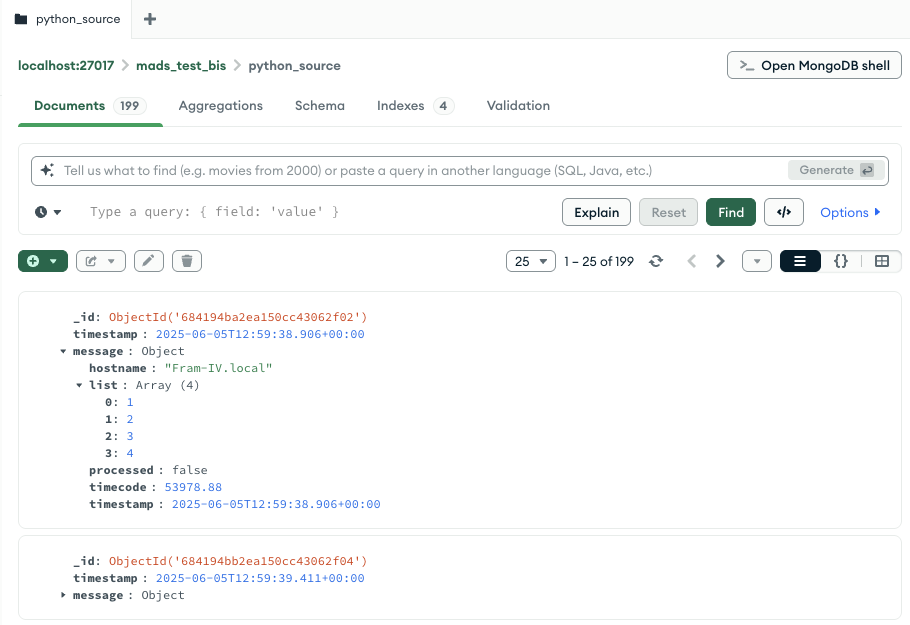

To do that, open the table you want to export in Compass. Suppose that you have something similar:

MongoDB Compass screenshot

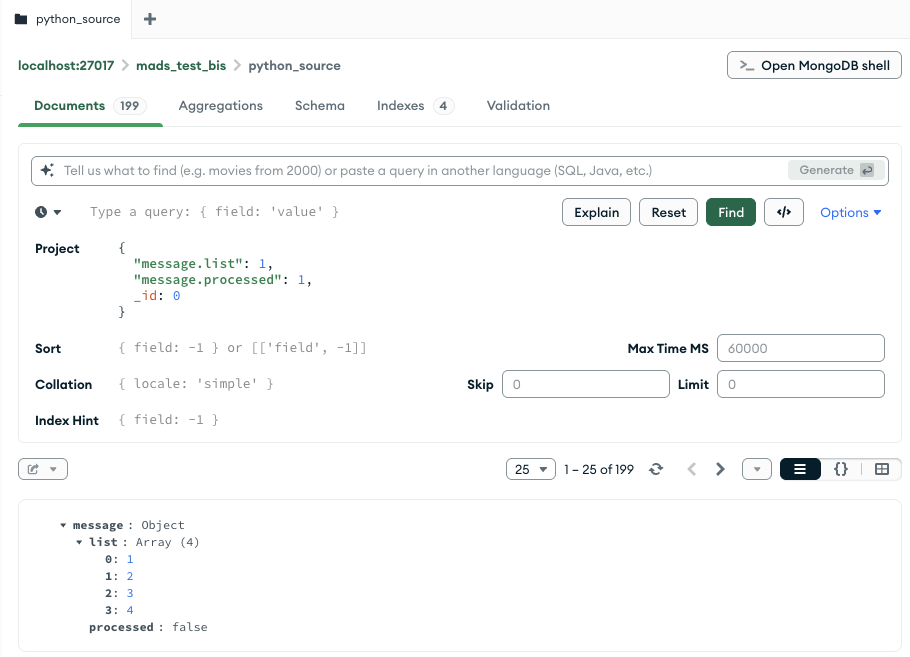

We only want to export the elements with keypaths message.list and message.processed. Then expand the Options… query menu and set the Project field as:

Query projection

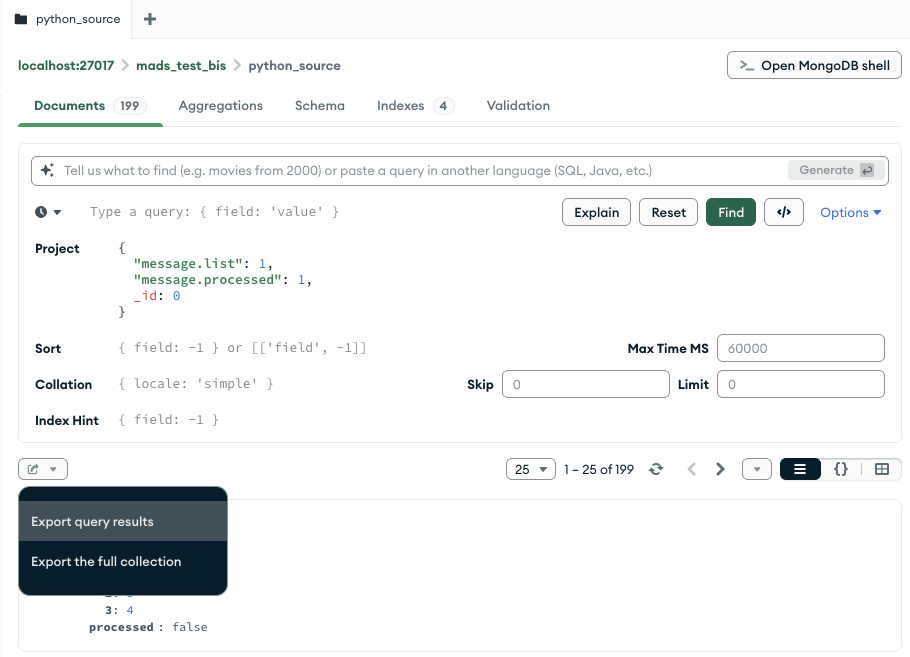

Now click on the expand icon on the top left of the objects list and select Expand query results:

Expand fields

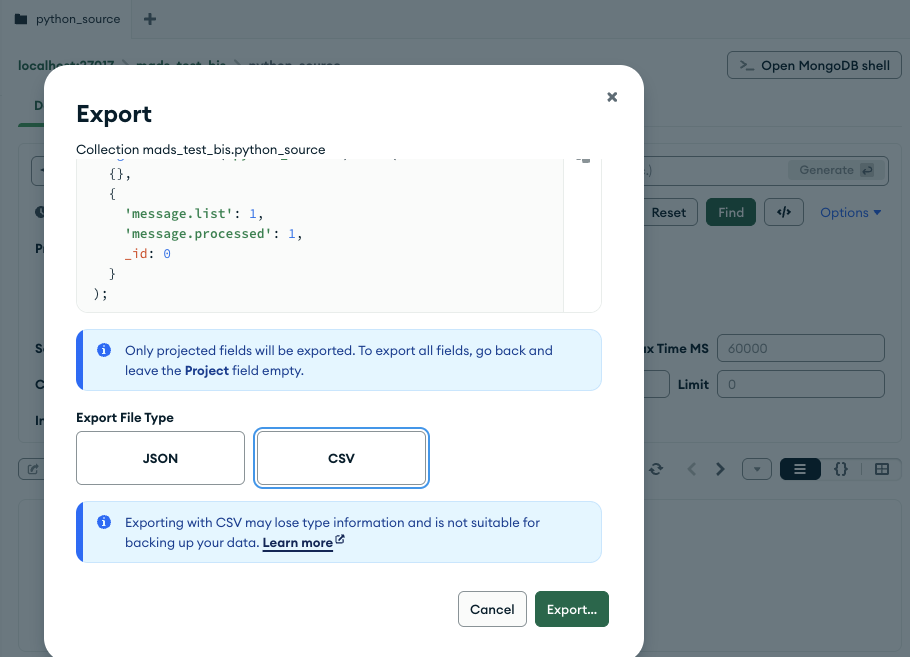

Finally, select CSV as export format, and save the file:

Export CSV

The resulting CSV file will look like this (first two lines only):

message.list[0],message.list[1],message.list[2],message.list[3],message.processed
1,2,3,4,false

Important

The replay of the data currently only support the timing stated by the --period command line option or by the period INI file field. This means that:

• if the original data contains a timestamp field, that is not used for the replay
• if stream was not periodic, the replay will be anyway periodic, with the specified period.
