Director

Author

Affiliation

Paolo Bosetti

University of Trento

Abstract

MADS v2 provides a new command that makes it easier to launch and control many different agents on the same machine.

The new mads director command

It is often the case that you have to launch and control different agents on the same machine, like the broker, the logger, the monitor, the feedback, plus some other locally running agents.

This scenario requires to have as many terminals — or split screens — running, repeatedly typing the same startup commands every time.

This is of course not really ideal nor comfortable. Some users solve this issue by writing custom startup scripts, which int turn has its own downside (maintainability, programming needed).

The new command mads director is to the rescue. The command is actually a GUI that spawns a number of different processes according to a TOML file (same syntax as mads.ini).

WarningWindows specific note

As for any other MADS command, to launch the director you have to type mads-director (note the hyphen!).

The director.toml file

The list of commands to be executed is defined in the director.toml file, which is by default searched by the mads director command in the current working directory or in the path given as first argument. If the file is not available, it prints a template for that file, which you can use as a starting point:

# director example configuration
# Notes:
# - [director] is optional global settings.
# - Each top-level section name is the process name (mandatory).
# - All options are shown below with defaults and purpose.

[director] # optional: global director settings
terminal = "" # optional, default="": terminal executable for detached attach windows

[db] # process section name (mandatory)
command = "./bin/db --port 5432" # mandatory: command line to execute
after = "" # optional, default="": start after this process name
workdir = "" # optional, default="": working directory (uses director working directory)
enabled = true # optional, default=true: when false, process is listed but never started
scale = 1 # optional, default=1: number of instances to launch
relaunch = false # optional, default=false: restart on non-zero exit status
tty = false # optional, default=false: enable TTY/attach interaction
# if workdir/.venv exists, director exposes it to launched Python commands

[api] # process section name (mandatory)
command = "./bin/api_server --port 8080" # mandatory: command line to execute
after = "db" # optional, default="": dependency by process name
workdir = "services/api" # optional, default="": working directory for this process
enabled = true # optional, default=true: when false, process is listed but never started
scale = 1 # optional, default=1: number of instances to launch
relaunch = false # optional, default=false: restart on non-zero exit status
tty = false # optional, default=false: enable TTY/attach interaction

Each section is the custom name for a command: for example [broker] will define the settings for launching a broker. Note that any valid command is supported (not only mads commands).

Each command has different options, above reported with their defaults:

• command: this is the full command line including arguments, as if you were launching it from a terminal
• after: if given, the corresponding command is executed only after starting the command at the corresponding section
• workdir: an optional working directory; if missing, it is the directory from which mads director has been started
• enabled: if false, the command won’t be started
• relaunch: automatically relaunch a command if it fails or crashes
• tty: set it to true if the command accepts interaction (like mads broker)

ImportantPython

The suggested way to use Python is by using virtual environments. If the process working directory contains a .venv directory, then it is activated before launching the process. This is the case for the rerunner.plugin.

The [director] section only has a single option, terminal, which shall be set to the full path of your preferred terminal application. If missing, the OS default will be used.

Usage

The director GUI has the following elements.

• on the left: the selectable list of processes, with their current status and PID number
• on the right, form top to bottom:
  • details on the selected process
  • launch command
  • buttons for starting, stopping or relaunching the selected process
  • TTY interaction: used for sending input to the selected process
  • option for attaching a terminal: if the user interaction is more complex, you can attach the running process to a new terminal window
  • the process output log (normal or selectable)

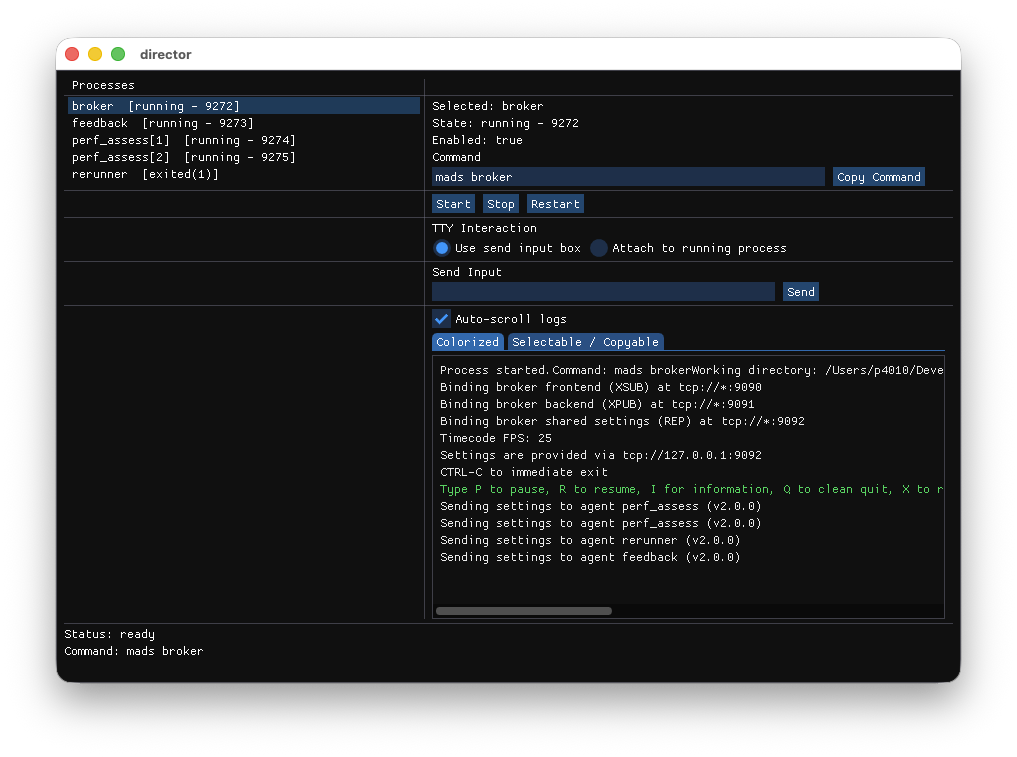

The mads director window

Important

On closing the GUI, all the controlled processes are closed.

Operating system support

The director GUI shall work on macOS, Linux and Windows. The MADS installer packages include the mads director command, with the exception of the version for ARM64 Linux. This is due to the fact that this is typically the platform for RaspbianOS on Raspberry Py devices, and the GUI is not compatible with the minimalist graphical front-end fo RaspbianOS.

Not that the mads director is also available as a separate project on https://github.com/mads-net/mads_director, so if you really need it on Raspberry you could try and compile by yourself.
